LPC1778FET208,551
Manufacturer:
Nxp Semiconductors
Mfr.Part #:
LPC1778FET208,551
Datasheet:
Description:

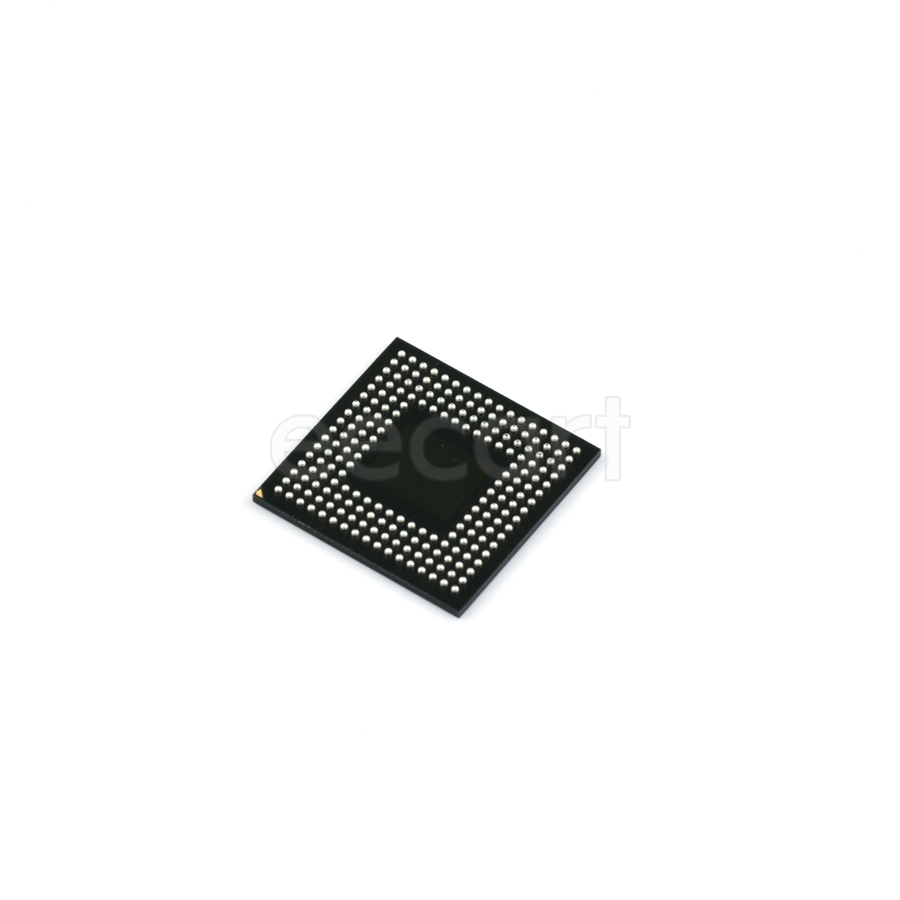

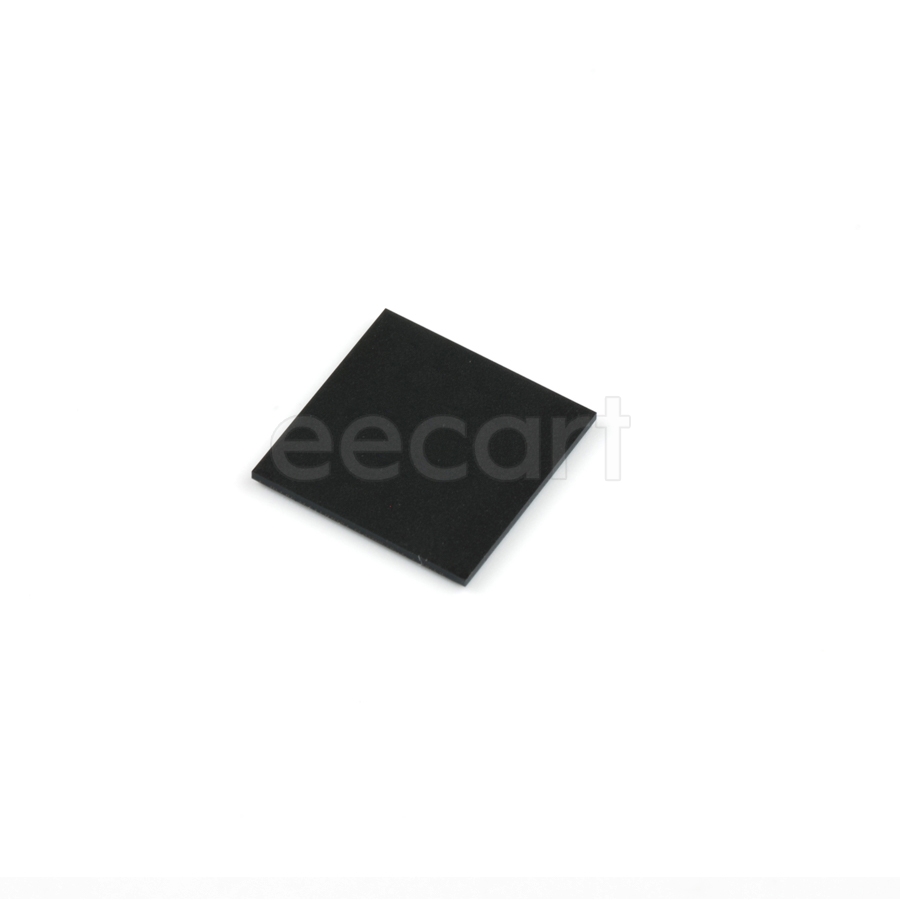

Microcontrollers TFBGA-208 SMD/SMT 32 bit 512 kb FLASH
| Parameter | Value |
|---|---|
| Length | 15.1 mm |
| Width | 15.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 208 |
| Height | 800 µm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Frequency | 120 MHz |
| Core Architecture(core/core processor) | ARM |
| Interface | CAN, EBI/EMI, Ethernet, I²C, I²S, MMC, SD, SPI, SSP, Serial, UART, USART, USB |
| Memory Size | 512 kb |
| Memory Type | FLASH |
| Number of I/Os | 165 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, DMA, I²C, POR, PWM, WDT |
| Operating Supply Voltage | 3.3 V |
| Max Power Dissipation | 1.5 W |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.4 V |
| Number of ADC Channels | 8 |
| Max Frequency | 120 MHz |
| RAM Size | 96 kB |
| Data Bus Width | 32 bit |
| Number of PWM Channels | 6 |
| Number of Programmable I/O | 165 |
| Number of SPI Channels | 3 |
| Number of Timers/Counters | 4 |
| Number of I2C Channels | 3 |
| Number of UART Channels | 5 |
| Number of Ethernet Channels | 1 |
| Schedule B | 8542310000 |
| Max Clock Frequency | 120 MHz |
| ADC Resolution | 12 bit |
| RoHS | Compliant |
| Packaging | Tray |
